Bikes > BMC > Timemachine > Timemachine Mpc.

  • BMC Timemachine Mpc.

    Timemachine Mpc.



    CHF 18999

    PDV CHF 18999
    Dérailleur
    Frein
    Cadre
    Timemachine Mpc. | Mpc. Premium Carbon | Full Mount - UDH | Flat Mount Disc | Bottle cage compatible | 142x12mm Thru-Axle
    Fourche
    Timemachine Mpc. | Mpc. Premium Carbon | Halo+ bayonet front fork | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
    Rayon
    • Cadre Timemachine Mpc. | Mpc. Premium Carbon | Full Mount - UDH | Flat Mount Disc | Bottle cage compatible | 142x12mm Thru-Axle
    • Taille M-L
    • Fourche Timemachine Mpc. | Mpc. Premium Carbon | Halo+ bayonet front fork | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
    • Guidon BMC Timemachine Mpc. Flat Cockpit integrated within the Halo+ fork | Compatible with Custom extensions or Profile Design Aeria 1. (available either in EUR or UK brake config. versions)
    • Potence Intergrated with fork and base-bar.
    • Tige de selle Timemachine Mpc. | Mpc. Premium Carbon | forward: -5.5mm / -18mm / -30.5mm / -43mm offsets (compatible with optional "standard" version: -18mm / 0mm / +18mm / +36mm offsets)

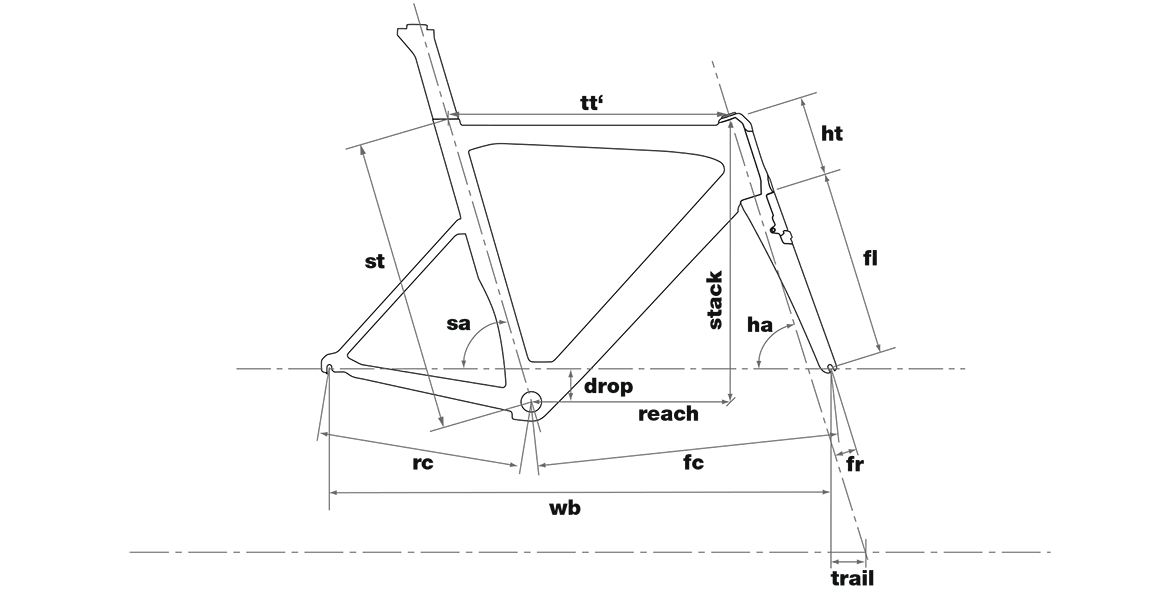

    Geometrie – timemachine TMR01 Ultegra
    Grösse 48 51 54 56 58 61
    Stack mm 505 525 545 560 580 605
    Reach mm 370 378 386 392 400 410
    Sitzrohr st mm 524 546 567 583 603 629
    Oberrohr tt' mm 515 529 542 553 566 583
    Steuerrohr ht mm 109 125 144 160 181 207
    Sitzwinkel sa ° 74 74 74 74 74 74
    Steuerwinkel sa ° 70.5 72 72.5 72.5 72.5 72.5
    Kettenstrebe rc mm 405 405 405 405 405 405
    Front center fc mm 573 574 584 595 609 627
    Radstand wb mm 968 969 979 990 1004 1022
    Tretlagerabsenkung mm 69 69 69 69 69 69
    Gabellänge fl mm 368 368 368 368 368 368
    Gabelvorlauf fr mm 42 42 42 42 42 42
    Nachlauf mm 75 66 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 100 110 120 130 130
    Vorbauwinkel ° +/- 6 +/- 6 +/- 6 +/- 6 +/- 6 +/- 6
    Lenkerbreite mm 420 420 420 440 440 440
    Lenker Drop mm 123 123 123 123 123 123
    Lenkervorbiegung mm 77 77 77 77 77 77
    Sattelstützenlänge mm 190 190 230 230 230 290
    Sattelstützen-Versatz mm 0 / 15 / 30 0 / 15 / 30 0 / 15 / 30 0 / 15 / 30 0 / 15 / 30 0 / 15 / 30
    Überstandshöhe mm 760 780 800 815 835 860
